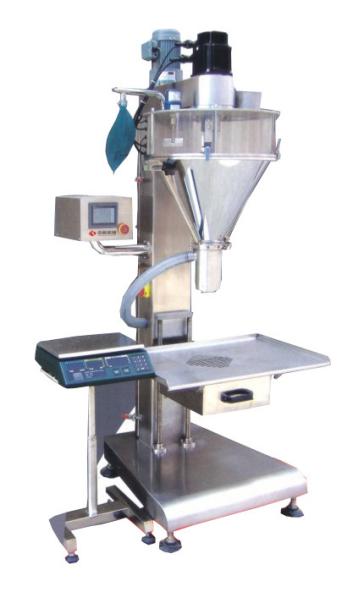

1.簡要說明:
整機全不銹鋼;充填采用步進電機驅動;攪拌采用臺產免保養減速電機;全密封、阻尼氣壓;可回收裝置,方便升降工作臺,主要試用于面粉、米粉、細小顆粒等干粉、顆粒狀物料的半自動灌裝。
1.Brief Introduction:
This machine is completely made of stainless steel, Filling system is driven by seruo-motor , and Taiwan made maintenance-free reducer is used for agitating motor , Product cabinet is specified as fully closed , damper air-pressure control , made of stainless steel and glass . The dust extraction device is mounted in the mouth of the filling tube , designed for reusable working table height adjustable , with a waste product drawer under the table .
2.主要特點:
1、整機全不銹鋼,完全滿足GMP/食品衛生等認證要求,要求抗腐蝕化工等產品的包裝;
2、設備工作穩定、抗干擾、稱重精度高,稱重反饋比重跟蹤式,克服了因物料比重變化而致使包裝重量發生變化的缺點;
3、設備定位精度高、扭距大、壽命長、轉速可設定;
4、攪拌采用免保養減速電機:噪音低、壽命長、終身免保養;
5、隨時可無極可調,工作狀態隨時任意變換,操作便捷;
6、各種產品調整參數配方可存儲,備后適用,最多儲存10個配方;
7、全密封空氣阻尼玻璃不銹鋼組合料箱,物料動靜一目了然,粉塵不外泄;
8、設備下料方式為螺旋下料,更換螺旋附件,能夠適應超細粉到大顆粒等多種物料;
9、此設備采用螺桿計量、下料;
2.Main Features :
1、Made of stainless steel : totally adapt to the require of GMP or other food sanitation certification suitable for packing corrosive chemicals ;
2、Filling better stability and higher weighing precision ;
3、Filling system is driven by BuJin motor , high precision , high torque , long operation life and rpm settable ;
4、Taiwan made maintenance-free reducer is used for agitating motor: low noise level , long operation life , maintenance-free for life time ;
5、Designed for working condition changeable in any time ;
6、Max.10 recipes can be saved for later using ;
7、Product cabinet is fully closed , damp air-pressure controlled and made of glass with stainless steel , product’s movement in the cabinet is clear at a glance no powder leak , dust extraction device mounted in the mouth of the filling tube lead to clean plant environment ;
8、Trough changing accessories , the machine is suitable for multiple products , no matter super fine power or large grain .
3.技術差數/Specification:
型號/Model |
ZK-30 |
計量方式/Measuring way |
螺桿計量、下料 |
包裝重量/Weight range |
1-2000g |
包裝精度/Accuracy |
1% |
包裝速度/Speed |
10-40袋/分 |
電源/Voltage |
220V |
料箱容積/Hopper |
20L |
整機功率/Power |
1.2KW |
毛凈重/G.N. Weight |
230/200kgs |
整機體積/Size |
700×860×1750mm |
廣州中凱包裝專用設備有限公司歡迎廣大新老客戶光臨指導~
聯系人:
羅先生13316290803(微信同號)
QQ:1739232415
地址:廣州番禺區南村鎮塘東村東環路8號
本機配合上料機使用,效率更高!!!如要了解上料機的詳細情況,請點擊下面圖片或在線、來電咨詢!
