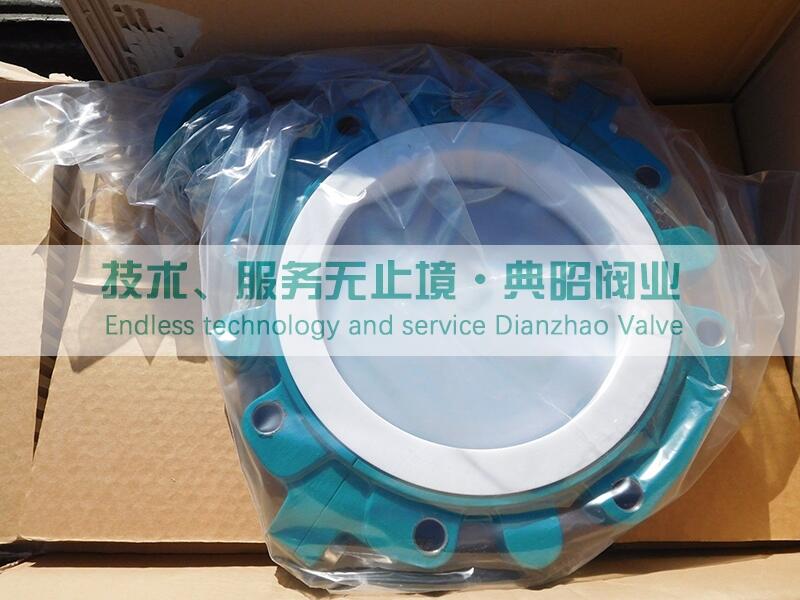

INTERAPP B30200.2A-2BE.4GT.TV襯氟蝶閥，BIANCA襯氟蝶產品范圍：

口徑：DN32-DN900
壓力：PN6/PN10(Class150)
主體材料：球墨鑄鐵GGG40
閥板材料：不銹鋼PTFE/PFA包覆
閥座材料：PTFE(EPDM/VITON)
連接方式：對夾式、支耳式、U型

INTERAPP B30200.2A-2BE.4GT.TV Fluorine Butterfly Valve, BIANCA Fluorine Butterfly Product Range:
Caliber: DN32-DN900
Pressure: PN6 / PN10 (Class150)
Body Material: Ductile Iron GGG40
Valve plate material: stainless steel PTFE / PFA coating
Seat material: PTFE (EPDM / VITON)
Connection method: wafer type, lug type, U type

INTERAPP B30200.2A-2BE.4GT.TV襯氟蝶閥產品特點：
閥板基材采用優質雙相不銹鋼一體式精密鑄造成型（無焊接）實現由于介質卡阻等力矩突增情況下閥桿密封安全性，限度的閥桿泄露安全防護，閥板包覆高級別融流率PFA，具有更高的熱塑性和耐溫性，確保卓越的零泄露密封性及介質安全性
閥板與閥座的密封形式為球面密封，密封性能更佳，有效降低流阻；
先進的等靜壓成型聚四氟乙烯（PTFE）閥座，與傳統模壓方式比具有極高的密度均勻性，超過2.16g/cm?的均勻密度，至少3mm的厚度，保證材料的低滲透率，延長閥門的使用壽命；

The valve plate base material is made of high-quality duplex stainless steel integrated precision casting (no welding) to achieve the safety of the valve stem sealing under the condition of sudden increase in torque such as media jamming, limited protection against leakage of the valve stem, and the valve plate is coated with high-grade Flow rate PFA, with higher thermoplasticity and temperature resistance, ensuring excellent zero leakage sealing and media safety
The sealing form of the valve plate and the valve seat is a spherical seal, which has better sealing performance and effectively reduces the flow resistance;
The advanced isostatically molded polytetrafluoroethylene (PTFE) valve seat has a very high density uniformity compared with the traditional molding method, a uniform density exceeding 2.16g / cm ?, and a thickness of at least 3mm to ensure low permeability of the material , To extend the service life of the valve;
