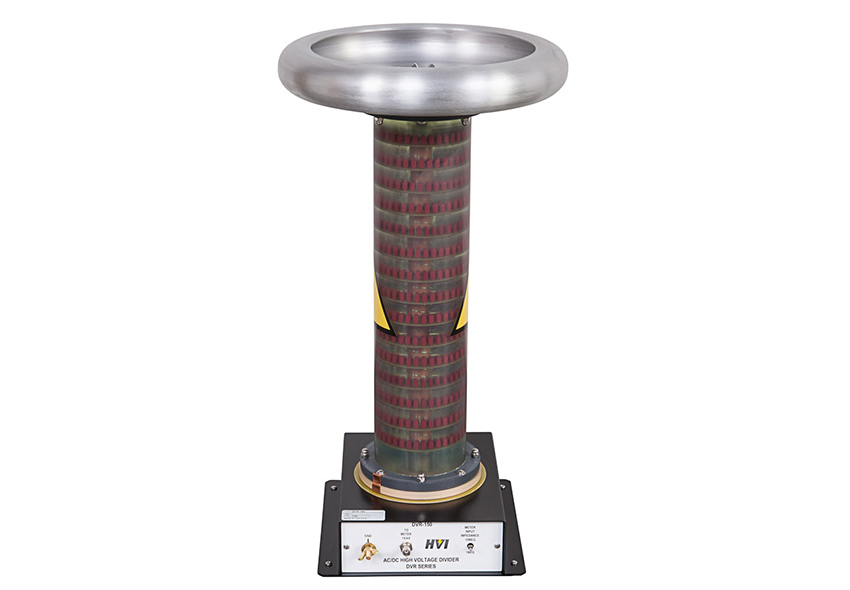

The DVR Series offers a 150 kV and a 300 kV AC/DC model designed with precision resistor/capacitor networks that provide low voltage outputs proportional to the applied high voltage input. Their 1000:1 and 10,000:1 ratios (respectively) extend the measurement capability of most digital voltmeters and oscilloscopes to 150,000 V or 300,000 V.
The dividers include a switchable low-end impedance to match various metering inputs. Both are suited for waveshape/harmonic analysis using a standard oscilloscope and can be used to measure DC multiplier circuits or AC transformers, limited only by the digital voltmeter (DVM) connected as the metering device.
They are not designed for impulse or square wave applications.
Features:
The DVR-150 is HVI’s 150 kV model designed with precision resistor/capacitor networks providing low voltage outputs proportional to the applied high voltage input. The divider includes a switchable low-end impedance to match various metering inputs. The DVR-150 is suited for waveshape/harmonic analysis using a standard oscilloscope and can be used to measure DC multiplier circuits or AC transformers, limited only by the digital voltmeter (DVM) connected as the metering device. It is not designed for impulse or square wave applications.
| Voltage Range: | 1-150 kV DC or AC to 1 kHz sinusoidal |
|---|---|
| Output: | 1 V per 1 kV applied (1000:1 ratio) |
| Divider Accuracy: | ±0.5%, -14 to 104o F, -10 to 40o C |
| Input Resistance: | 715 MΩ |
| Input Capacitance: | 96.3 pF |
| Cable Length: | 25 ft. (7.6 m) RG 58/U coaxial cable |
| Divider Termination: | 13 in. (330 mm) diameter spinning |
|
Size & Weight: (W x D x H) |
13 x 13 x 24.5 in., 20 lb. 330 x 330 x 622 mm, 9 kg |
DVR-150 & DVR-300高壓分壓器
0-150 kV和0-300 kV交直流電壓
DVR-150 和 DVR-300 為兩款精密電阻器/電容器高壓分壓器，能夠?qū)⑤斎氲母邏喊幢壤敵龅蛪�。二者的分壓比分別為1000:1和10000:1，從而將大部分?jǐn)?shù)字電壓表和示波器的測量能力擴大到了150 kV或300 kV。分壓器包含一個可切換的低阻抗，以適應不同測量輸入。
利用一個標準示波器，這兩款分壓器均適用于波形或諧波分析，并能用于測量直流倍增器電路或交流變壓器，僅受作為測量裝置使用的數字電壓表（DVM）的限制。這兩款分壓器不適用于測量脈沖波或方波。
? 可作為內部高壓校準的參照；
? 設計與大多數數字萬用表或示波器一起使用；
? 無需外部電源；
? 10兆歐/ 1兆歐低阻抗切換開關
? 體積輕巧，結構堅實 適合運輸
? 不易受 相鄰電場的干擾影響
|
電壓范圍 |
1 - 150 kV或1 - 300 kV，直流或交流，1 kHz正弦波形 |
|
輸出 |
DVR-150：1.0 V/1 kV 輸出 DVR-300： 0.1 V/1 kV輸出 |
|
精度及溫度額定值 |
± 0.5%，10° - 40°C |
|
輸入電阻 |
DVR-150：715 MW DVR-300：1430 MW |
|
輸入電容 |
DVR-150：96.3 pF, DVR-300:49 pF |
|
標配電纜 |
7.6M長RG58/U同軸接地線 |
|
輸出端子 |
DVR-150：直徑330mm的旋轉式端子 DVR-300：直徑559mm的旋轉式輸出端子 |
|
尺寸和重量 |
DVR-150：330 mm 寬 x 330 mm 深 x 622 mm 高, 9 kg DVR-300：610 mm 寬 x 610 mm 深 x 1550 mm 高, 39 kg |
|
型號 |
DVR-150 |
DVR-300 |
|
調壓范圍 |
1-150 kV |
1-300 kV |
|
輸出電壓 |
1V/1kV |
1V/10kV |
|
精度 |
+/-0.5% , 10-40oC |
|
|
輸入阻抗 |
715M? |
1430M? |
|
輸入容抗 |
96.3pF |
49pF |
|
附帶電纜 |
7.6m RG58/同軸帶接地 |
|
|
分壓端子 |
330mm |
559mm |
|
體積重量 |
Ф330x622mm, 9kg |
Ф610x1550mm, 39kg |
