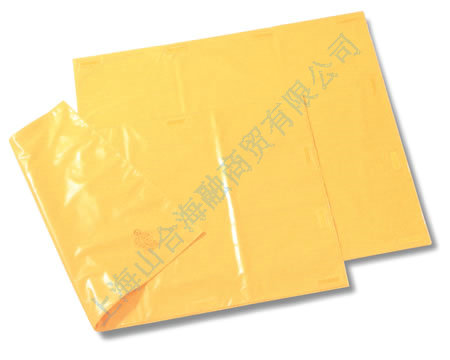

The PLASTIC INSULATING SHEETS are used as a portable protective device for protection of electrical workers from accidental contact with live electrical conductors, apparatus, or circuits.
塑料絕緣毯采用EVA材料制作，是一款便攜式保護裝置，用于防止電力操作人員意外觸碰帶電的電導體，裝置，或電路。
The PLASTIC INSULATING SHEETS which substitute for rubber insulating products, are very light and are easy to use compared with rubber insulating products.
EVA材料制作的EVA材料制作跟橡膠絕緣毯相比，具有絕緣性能強，機械強度適中，輕便的特點，完全可以替代橡膠絕緣毯。
|
ITEM NO. 型號 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 測試電壓 |
A.C.MAXIMUM USE VOLTAGE 最大使用電壓 |
|---|---|---|---|
| YS203-11-01 | 600x1000 | 20KV / 1min | 7000V |
| YS203-11-02 | 680x800 | 20KV / 1min | 7000V |
| YS203-11-03 | 680x800 | 20KV / 1min | 7000V |
| YS203-11-04 | 900x1000 | 20KV / 1min | 7000V |
| YS203-11-05 | 800x1000 | 20KV / 1min | 7000V |
| YS203-11-06 | 600x1000 | 20KV / 1min | 7000V |
| YS203-11-20 | 700x1500 | 20KV / 1min | 7000V |
| YS241-01-01 | 600x1000 | 20KV / 3min | 17000V |
| YS241-01-02 | 680x800 | 20KV / 3min | 17000V |
| YS241-01-03 | 680x1200 | 20KV / 3min | 17000V |
| YS241-01-04 | 800x1000 | 20KV / 3min | 17000V |
| YS241-01-05 | 900x1000 | 20KV / 3min | 17000V |
| YS242-01-01 | 600x1000 | 30KV / 3min | 26500V |
| YS242-01-02 | 680x800 | 30KV / 3min | 26500V |
| YS242-01-03 | 680x1200 | 30KV / 3min | 26500V |
| YS242-01-04 | 800x1000 | 30KV / 3min | 26500V |
| YS242-01-05 | 900x1000 | 30KV / 3min | 26500V |
