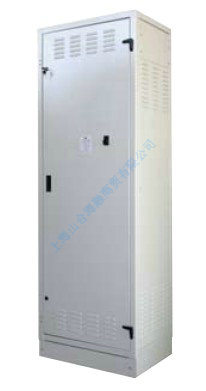

西班牙LIFASA HPF高通濾波器

產品價格：￥（人民幣）

規格：HPF

發貨地：上海

品牌：

最小起訂量：1件

QQ洽談點擊詢價進入商鋪

上海山合海融商貿有限公司

誠信商家

會員級別：

認證類型：企業認證

企業證件：通過認證

認證信息：上海山合海融商貿有限公司

商鋪名稱：上海山合海融商貿有限公司

聯系人：孫寶金（先生）

聯系手機：

固定電話：

企業郵箱：sh@51082245.com

聯系地址：上海市寶山區陸翔路678弄60號

郵編：201907

聯系我時，請說是在焊材網上看到的，謝謝！

商品詳情

HPF HIGH PASS FILTER
Description
HPF filters are specially designed to remove harmonics from the current absorbed by 6 pulse power converters, such as frequency converters for motors, UPS, welding equipment, etc. They are essentially passive filters based on a series parallel combination of inductance and capacitors. (Main function is to filter the 5th and 7th current harmonic and to decrease the level of the 11th and 13th current harmonics). With these HPF filters we will be able to get a reduction of the THD (I) level higher than a simple input reactor reduction, decreasing THD (I) to values below 8%. At full load conditions the THD (I) becomes lower than 5%.
Options
Kit regulación sobre-compensación/Overcorrection regulating Kit
Kit de medida/Measuring kit
Technical Characteristics
Tensión nominal/Rated voltage .........................................................................400 ~ 480 V
Frecuencia/Frequency .........................................................................................50/60 Hz
Corriente RMS de carga (Ic)/RMS load current (Ic) ......................................4 ... 1000 A
Máx. sobrecarga /Max. ooverload ..........................................................................................1min. a 1,5 Ic
Corriente RMS filtrado (If)/Filtered RMS current (If)........................................1.6 ... 72 A
THD residual/THD residual current ...................................................................Aprox. 8%
Caída de tensión a In/Voltage drop at In................................ ......................< 2%
Construcción/Construction ...................................................................................Armario metálico/Metal cabinet
Grado de protección/Protection degree ........................................................IP 20
Color/Colour .........................................................................................................Gris RAL 7035
Instalación/Installation .........................................................................................Interior/Indoor
Montage/Assembly ...............................................................................................Tipo A/B: Mural, Tipo C/D: Sobre suelo
A/B type: Wall mounting, C/D type: Floor mounting
Normas/Standards ..............................................................................................EN 60439, EN 60831, UNE-EN 61000-6-3,
UNE-EN 61000-6-4

Part number	RMS load current(A)	Filtered RMS current (A)	Voltage(V)	Frequency (Hz)	Cabinet	Price(€)
50 Hz
HPF140009	9	3.6	400/415	50	A	On request
HPF140016	16	6.4	400/415	50	A
HPF240022	22	8.8	400/415	50	A
HPF240032	32	12.8	400/415	50	A
HPF240040	40	16	400/415	50	A
HPF240047	47	18.8	400/415	50	B
HPF240054	54	21.6	400/415	50	B
HPF340064	64	25.6	400/415	50	B
HPF340076	76	30.4	400/415	50	B
HPF340090	90	36	400/415	50	C
HPF340110	110	44	400/415	50	C
HPF440150	150	60	400/415	50	C
HPF440180	180	72	400/415	50	C
	... 400				D

60 Hz
HPF146009Z	9	3.6	460/480	60	A	On request
HPF146016Z	16	6.4	460/480	60	A
HPF246022Z	22	8.8	460/480	60	A
HPF246032Z	32	12.8	460/480	60	A
HPF246040Z	40	16	460/480	60	A
HPF246047Z	47	18.8	460/480	60	B
HPF246054Z	54	21.6	460/480	60	B
HPF346064Z	64	25.6	460/480	60	B
HPF346076Z	76	30.4	460/480	60	B
HPF346090Z	90	36	460/480	60	C
HPF346110Z	110	44	460/480	60	C
HPF446150Z	150	60	460/480	60	C
HPF446180Z	180	72	460/480	60	C
	... 400				D

Other current, voltages and frequencies available on request. Loads which need an instantaneus correction available on request.

Harmonic filters HAF, HPF
HAF ABSORPTION FILTER HPF140004 HPF146004Z HPF140009 HPF146009Z HPF140016 HPF146016Z HPF240022 HPF246022Z HPF240032 HPF246032Z HPF240040 HPF246040Z HPF240047 HPF246047Z HPF240054 HPF246054Z HPF340064 HPF346064Z HPF340076 HPF346076Z HPF340090 HPF346090Z HPF340110 HPF346110Z HPF440150 HPF446150Z HPF440180 HPF446180Z

Harmonic Filters
These filters are used when the main objective is not the reactive power compensation at the fundamental frequency, but to reduce the harmonic distortion in the supply system.
Among the problems caused by harmonics and which may make their suppression necessary, are the following:
Interferences in telecommunications.
Distortion on the mains voltage.
Disturbances in electronic systems.
Erratic operation of control and protection relays .
Failures in transformers and motors, due to overheating caused by losses on the core.
Overheating of protective fuses to the point where a minor spike on the line causes them to blow.
It should be pointed out that the impedance of all the filters is capacitive below its tuning frequency, whereby they also contribute, even if in a small scale, to the reactive power compensation at the fundamental frequency.
Installation of filters produces a modification on the topology of the electrical supply system. For this reason, the design of filters must be done with regard to an accurate analysis and study of the whole system.
According to the application, there are different types of filters:
3rd harmonic filter HBF-T
Isolation filter
Absortion filter HAF
High pass filter HPF
Active filter SINAF 2.0
