【德蒙螺桿空壓機】基本說明
---------------------------------------------------------------------------------------------
郴州螺桿式空壓機 ,郴州雙螺桿空壓機 ,郴州單螺桿空壓機 ,郴州全無油螺桿式空壓機 ,郴州靜音螺桿式空壓機 ,郴州直聯螺桿式空壓機 ,郴州水潤滑螺桿式空壓機 ,郴州固定螺桿式空壓機 ,郴州節能型螺桿式空壓機 ,郴州風冷型螺桿式空壓機，郴州皮帶螺桿式空壓機。
---------------------------------------------------------------------------------------------
使用德蒙（上海）壓縮機械有限公司的DMV系列郴州空壓機，您不必再為復雜的電器安裝和編程而操心，產品出廠前整體組裝完畢，只要將主電源連接上即可立刻工作。
德蒙螺桿空壓機通過功能強大的智能控制器不斷檢測空氣系統的壓力變化，精確的改變轉速，保證空壓機的排氣量與用戶系統的需求量保持一致。智能控制器的反映速度以毫秒計算，同時對速度的修正可以在3ms內完成，使其出口空氣壓力帶精確控制在最小以內。
By Using DMV Series Variable Frequency Air Compressor produced by DREAM (Shanghai) Compressor Co.,Ltd, you will never worry about its
complicated electrical equipment installation and program, because before delivery, the whole machine has been well installed, and once connected with power source, it can operate at once.
Through the powerful intelligent controller, it can constantly test the air pressure change and accurately change rotation speeds to ensure the air delivery keep consistent with the user demand. The reaction speed of controller is measured in milliseconds, meanwhile, the correction of speed can be finished in 3ms, which can accurately control the output pressure area within the minimum.
成本比較 Cost comparison
德蒙（上海）壓縮機械有限公司的DMV系列式空壓機能在穩定排氣壓力的原則下，精確地根據使用氣量的變化改變空壓機主電機的轉速，使空壓機只輸出所需要的氣量，同時也只消耗出這些壓縮空氣所必須的能量。從而達到了節約能源的目的，在整個機組運行周期中所節約的能源費用將遠遠超過空壓機本身的價格。
DREAM DMV screw air compressor can, under the principle of stable discharge pressure, change the rotation speed of the main motor precisely according to the variety of using air capacity, to make the air compressor just discharge the needed air capacity, meanwhile, it also just consumes the energy needed for discharging the compressed air. Therefore, it has achieved the goal of energy-saving, which means the saved energy expense during the operating period of the whole machine far surpass the price of air compressor itself.
【德蒙螺桿式空壓機】的優點
1、可靠性高：螺桿壓縮機零部件少，沒有易損件，因而它運轉可靠，壽命長，大修間隔期可達4-8萬小時。
2、操作維護方便：操作人員不必經過專業培訓，可實現無人值守運轉。
3、動力平衡性好：螺桿壓縮機沒有不平衡慣性力，機器可平穩地高速工作，可實現無基礎運轉。
4、適應性強：螺桿壓縮機具有強制輸氣的特點，排氣量幾乎不受排氣壓力的影響，在寬廣范圍內能保證較高的效率。
5、多相混輸：螺桿壓縮機的轉子齒面實際上留有間隙，因而能耐液體沖擊，可壓送含液氣體，含粉塵氣體，易聚合氣體等
The advantages of screw type air compressor
1, high reliability: parts of screw compressor, no wearing parts, so it reliable operation, long service life, overhaul interval of up to 4-8 million hours.
2, convenient operation and maintenance: the operator need not go through professional training, which can realize the unattended operation.
3, the dynamic balance is good: screw compressor no unbalanced inertia force, the machine can be smoothly high working speed, can be realized without the basic workings.
4, strong adaptability: screw compressor has the characteristics of compulsory gas, effects of exhaust volume is almost not affected by exhaust pressure, ensure the high efficiency over a broad range of.
5, multiphase: screw compressor rotor tooth surface actually gaps, which can impact can be pumped liquid, liquid gas, gas containing dust, easy polymerization gas etc.
【德蒙空壓機】變頻優點：
傳統空氣壓縮機一般使用系統上下限壓力檢測（或是加裝離合器）來控制壓縮機馬達工作，其缺點為馬達啟動時，啟動電流為額定電流的5-8倍，形成對電網及機械負載的沖擊，而且易燒毀馬達及起動電磁開關（MCC），所以空壓機在壓力下降過程中，長期處于空載運行。 由空壓機的工作原理我們可以得知，當空壓機系統工作時，客戶的用氣量始終在變化，壓縮機馬達始終處于運行狀態，當加壓時，（即儲氣罐壓力從低壓狀態上升到系統設置的壓力上限）壓縮機馬達處于重載運行狀態；降壓時，（即儲氣罐壓力從壓力上限狀態下降到系統設置的壓力下限）此時壓縮機馬達輕載運行；壓縮機馬達處于何種運行狀態是由空壓機進氣閥、排氣閥、泄氣閥（或離合器）控制。在儲氣罐壓力下降到系統設置最低壓力的過程中，壓縮機屬于在做無用功，而且儲氣罐壓力下降過程所需的時間隨客戶用氣量的變化在變化，儲氣罐壓力下降的時間約為儲氣罐加壓時間的2～3倍，由于空壓機壓縮機馬達功率較大，空載運行時間較長所以造成電能大量浪費。
The advantages of air compressor:
A traditional air compressor system. The general use of upper and lower limits of detection (or pressure is installing clutch) to control the compressor motor, it is when the motor is started up, the starting current is 5-8 times the rated current, the formation of the grid and mechanical load impact, and easily damaged motor and starter solenoid switch (MCC), so the air press in the pressure drop in the process, in the no-load operation for a long time. The working principle of the air compressor air compressor system we can learn, work, customer consumption always changing, always in the state of compressor motor running, when the compression, (that is, from low pressure air tank pressure rises to the system set pressure limit) compressor motor under operation state; when pressure of gas storage, (i.e. tank pressure from the upper pressure limit state down to the system set pressure limit) the compressor motor compressor motor light running; what is the running state is composed of an air compressor air inlet valve, exhaust valve, valve (or the clutch) control. Down to the process set minimum pressure system in the gas tank pressure, compressor is futile, and reservoir pressure decreases the time needed to process with the customer's consumption changes, the gas tank pressure drop time is about 2 ~ 3 times of the gas tank pressurization time, due to air compressor compressor motor power a large, long time so the no-load operation caused a lot of wasted energy.
【德蒙空壓機】變頻器具有以下特點：
1．節省電費約30%-70%，約年內即可回收投入的資金
2．空壓機變頻省電器不改變空壓機原有工作狀態，保證了空壓機內部機械部件和電器組件不受損害；
3． 壓機變頻省電器使一個周期內（系統壓力上升到系統設置的壓力上限，然后下降到系統設置的壓力下限為壓縮機工作一個周期）壓縮機2/3的時間處于停機狀態，延長了空壓機的使用壽命；
4． 空壓機省電器使一個周期內（系統壓力上升到系統設置的壓力上限，然后下降到系統設置的壓力下限為壓縮機工作一個周期）壓縮機2/3的時間處于停機狀態，降低了冷卻液的溫度，延長了冷卻液的使用時間；
5． 空壓機變頻省電器具有過流、過載、過壓、欠壓保護功能；
6． 空壓機變頻省電器采用全自動控制，無須人為看管；
7． 空壓機變頻省電器 可以節電/市電轉換，解除了客戶的后顧之憂；
螺桿壓縮機是當代最流行的結構型式。與傳統的活塞壓縮機相比，螺桿壓縮機最突出的優點是可靠性高，此外無振動，噪音易消除，排氣純凈。
Dream Compressor electric appliance has the following characteristics:
1 save electricity about 30%-70%, about a year to recover funds
2 air compressor electric appliance does not change the original state of air compressor, air compressor to ensure the internal mechanical parts and electrical components from damage;
3 compressor electric appliance makes a period (system pressure to the pressure limit, system settings, and then down to the lower pressure limit setting system for the compressor working for a period of time) compressor 2/3 is in a shutdown state, prolong the service life of the air compressor;
4 air compressor electric appliance makes a period (system pressure to the pressure limit, system settings, and then down to the lower pressure limit setting system for the compressor working for a period of time) compressor 2/3 is in a shutdown state, reducing the temperature of the cooling fluid, prolong the using time of the cooling liquid;
5 air compressor electric appliance has overcurrent, overload, overvoltage, undervoltage protection function;
6 air compressor frequency electrical automatic control, without human care;
7 frequency electric air compressor can be saving / electric conversion, lifting the customer any menace from the "rear";
Screw compressor is the most popular contemporary structure. Compared with traditional piston compressor, screw compressor is the most prominent advantages of high reliability, in addition, no vibration, noise elimination, the exhaust purity.
啟動和運行 Start-up and operation
圖中顯示的是幾種啟動方式的比較，可以看出機是緩慢地加速啟動，比軟啟動更加平穩，完全避免了電流峰值，在啟動運行至額定壓力后運行。能最大程度上適應電力不足的使用環境。
From several start-up modes shown in the chart, we can see that the variable frequency compressor start-up style is of slow to add speed, which more stable than soft start and absolutelyavoid the current peak. After running to the rated pressure, it will operate with variable frequency,which can adapt to the power lacking environment.
----------------------------

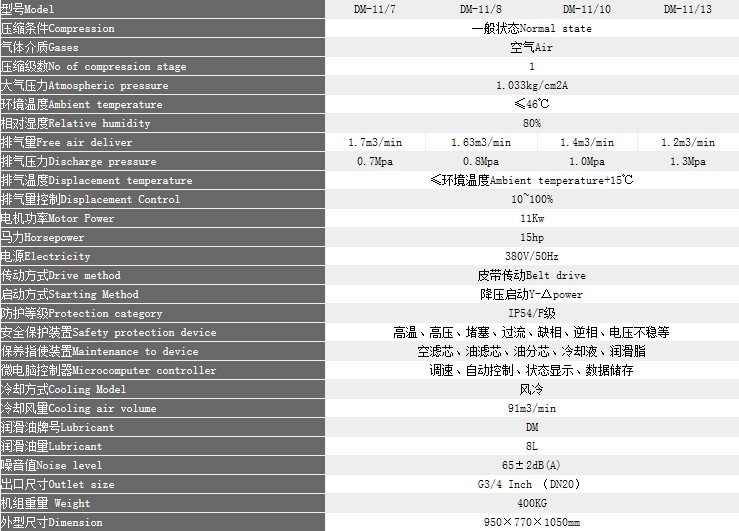

【德蒙螺桿空壓機】基礎參數
-----------------------------------------------------
【德蒙螺桿空壓機】相關介紹
1、 郴州螺桿空壓機的壓力設定可以是一點，即可以將滿足生產設備要求的最低壓力作為設定壓力，空壓機將根據管網壓力上下波動的趨勢，調節空壓機轉速的快慢，甚至消除了空壓機的卸載運行，節約了電能。
2、 由于空壓機使得管網上下壓力穩定，可以降低甚至消除壓力的波動，從而使系統中所有運行的空壓機都在一個滿足生產要求的較低的壓力下運行，減少了壓力向上波動造成的功率損失。
3、由于壓縮機不能排除在滿負載狀態下長時間運行的可能性，所以，只能按最大需求來決定電動機的容量，故設計容量一般偏大。在實際運行中，輕載運行的時間所占的比例是非常高的。如采用調速，可大大提高運行時的工作效率。因此，節能潛力很大。
4、 有些調節方式（如調節閥門開度和改變葉片的角度等），即使在需求量較小的情況下，也不能減小電動機的運行功率。采用了調速后，當需求量較小的情況下，可降低電動機的轉速，減小電動機的運行功率，從而進一步實現節能。
Dream related introduction of screw air compressor
1, Shuangyashan screw air compressor pressure setting can be a point, which can meet the minimum pressure production equipment requirements as set pressure, air compressor will be based on the pipe network pressure fluctuate trend, air conditioning compressor rotational speed, or even eliminate the unloading operation of air compressor, energy saving.
2, because the air compressor makes the network under pressure is stable, can reduce or even eliminate the pressure fluctuations, so that the air compressor running all systems are running in a production to meet the requirements of low pressure, reducing the power loss caused by pressure fluctuation upwards.
3, because of the compressor can not rule out the possibility at full load, long time running state of so, only to determine the motor according to the maximum demand capacity, so the design capacity is usually too large. In actual operation, the light load operation time ratio is very high. Such as the use of speed control, can greatly improve the runtime efficiency. Therefore, great potential in energy saving.
4, some regulation (such as regulating valve opening and changing the blade angle), even in the case of smaller demand, also cannot reduce the operation power of motor. The speed, when the demand is low, can reduce the speed of the motor, reduce the motor power, so as to achieve energy-saving.
【德蒙螺桿空壓機】售后服務
質保期 正常使用情況下，整機保修壹年，主機伍年；對整機實行終生維護。
一、安裝調試 德蒙（上海）壓縮機有限公司負責免費開機、調試及對操作人員的現場培訓，免費提供指導安裝。在設備安裝完畢后，派經驗豐富的工程師到現場進行免費技術服務，并負責解決合同設備在安裝調試運行中出現的問題。
二、培訓 免費提供在德蒙（上海）壓縮機有限公司或需方現場的技術培訓，由需方確定培訓時間的長短。
三、維修服務 德蒙（上海）壓縮機有限公司在各主要城市設有維修服務點，具有最快捷的服務和配件供給。
Dream Screw air compressor after sale service
The warranty period under normal use, the whole year warranty, life-long maintenance host for five years; implementation of the.
One,installation and commissioning of diamond (Shanghai) Compressor Co. Ltd. is responsible for on-site training free of charge to boot, commissioning and to operating personnel, to provide guidance to install free. In the equipment installation is completed, send experienced engineers to the scene to conduct free technical services, and shall be responsible for the contract equipment installation debugging problems in operation.
Two, the training provided free of charge in diamond (Shanghai) technology training limited or the site of the compressor, the length of training is determined by the buyer.
Three, repair service de (Shanghai) Compressor Co. Ltd. with repair service point in every major city, with the most efficient service and spare parts supply.
